Bresser Vixen Polar Fine Adjustment Unit – Precision Mounting Accessory for Telescopes

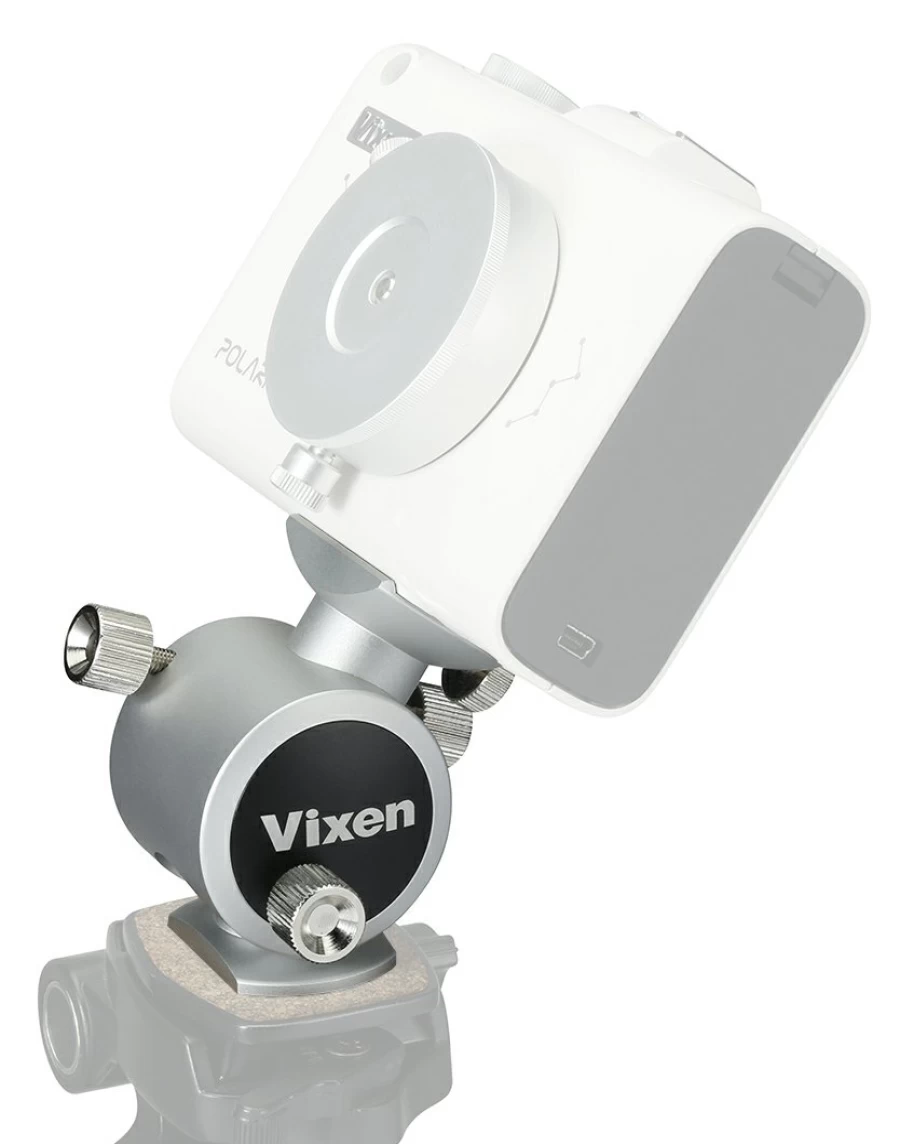

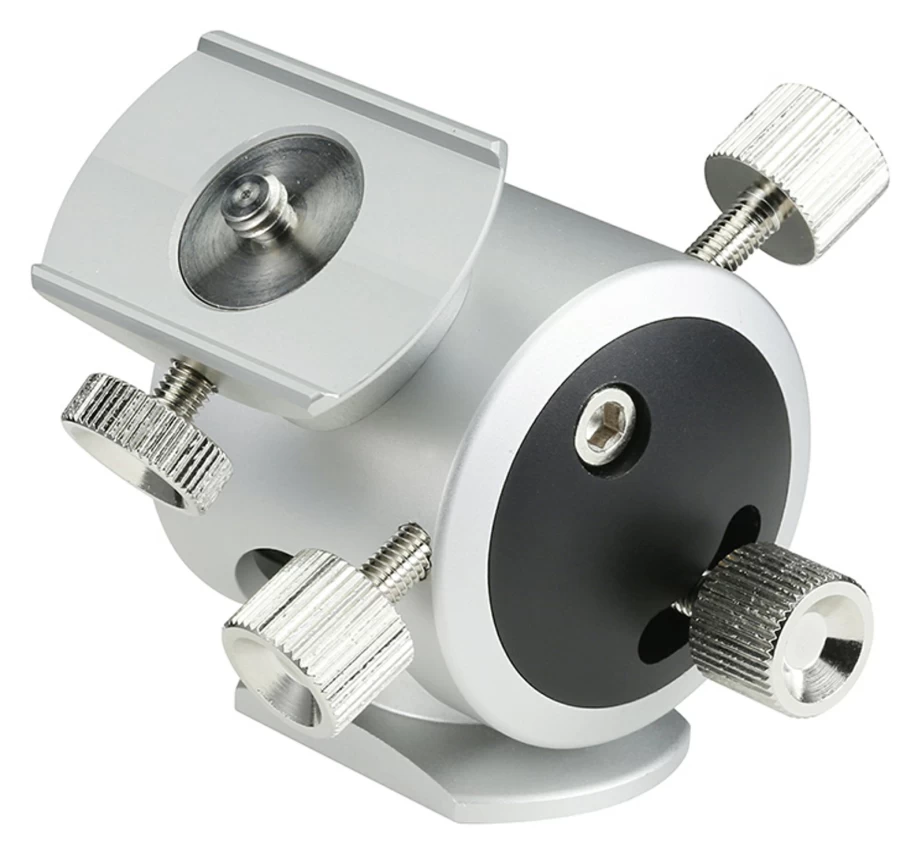

The Polar Fine Adjustment Unit Is An Accessory Designed For Installation Of Star Tracking Mounts Such As Polarie And The Ap Star Tracker System With Attachment Between The Photo Stand And The Star Tracking Mount. This Device Enables Fine Horizontal And Vertical Adjustment With Installation Of A Polar Axis Target. The Swivel Head, Which Is Designed Exclusively For Use On The Base Of Star Trackers, Can Be Secured Or Removed With A Single Screw. The Twin Screw System For Inclination And Azimuth Adjustment Ensures Fine Movement And Rigid Locking. The Adjustable Inclination Angle Of 0ﾟ～85ﾟ Enables Use In A Range Of Positions And Situations.
The Fine Adjustment Range Can Be Adjusted In Three Steps Of Low (0-30 Degrees), Medium (30-60 Degrees) And High (60-85 Degrees).

Features

• Fine Adjustment Unit For Precise Pole Alignment
• For Use On The Ap And Polarie Star Tracker
• Adjustment Range From 0° To 85°
• Photo Stand Connection (For 1/4” And 3/8” Screws)
• Weight: 300 G

• Fine Adjustment Unit
• Allen Key
• Adapter For 3/8” Screw
