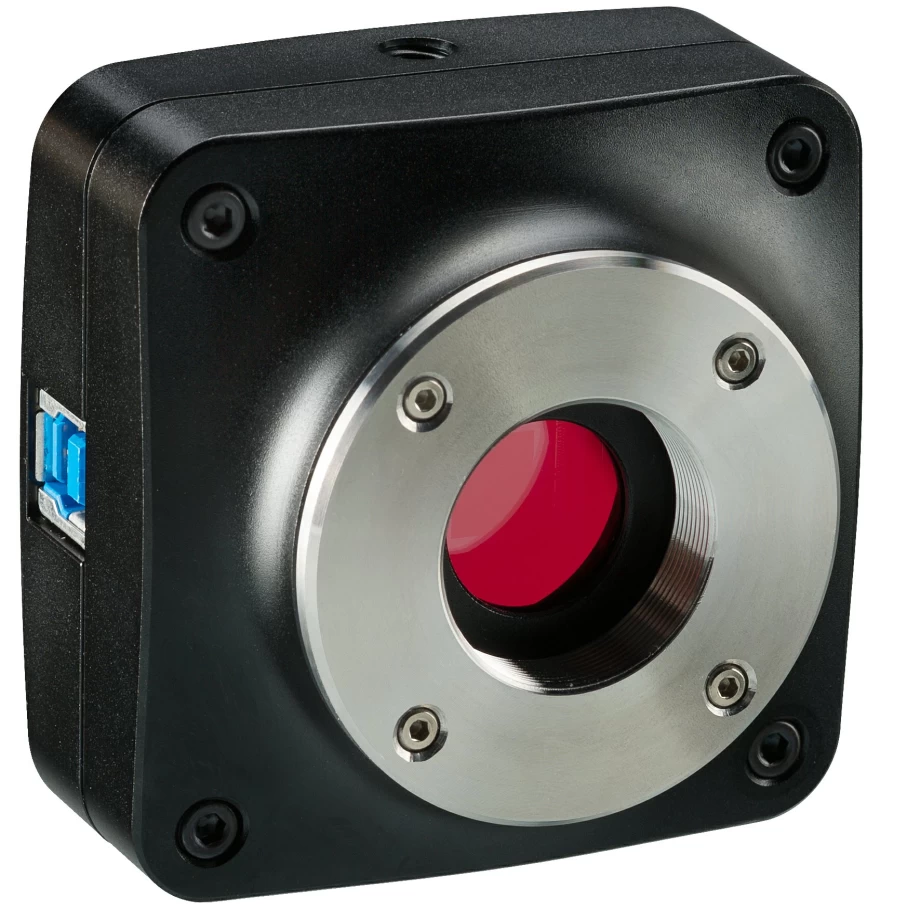

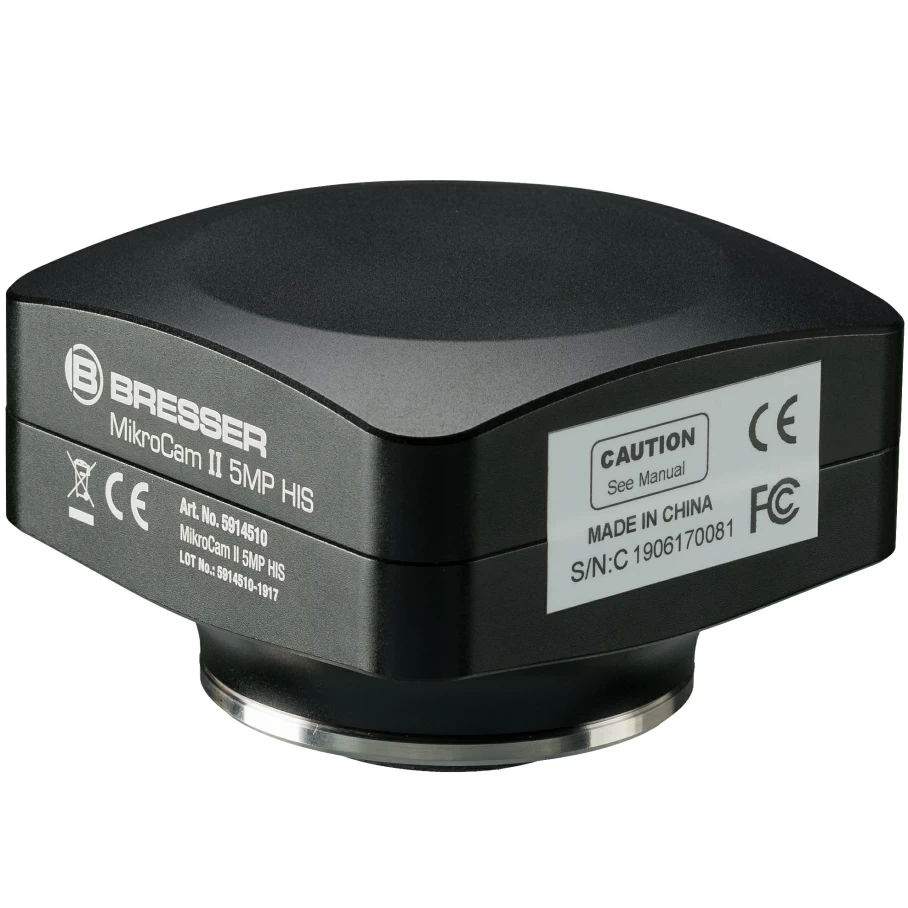

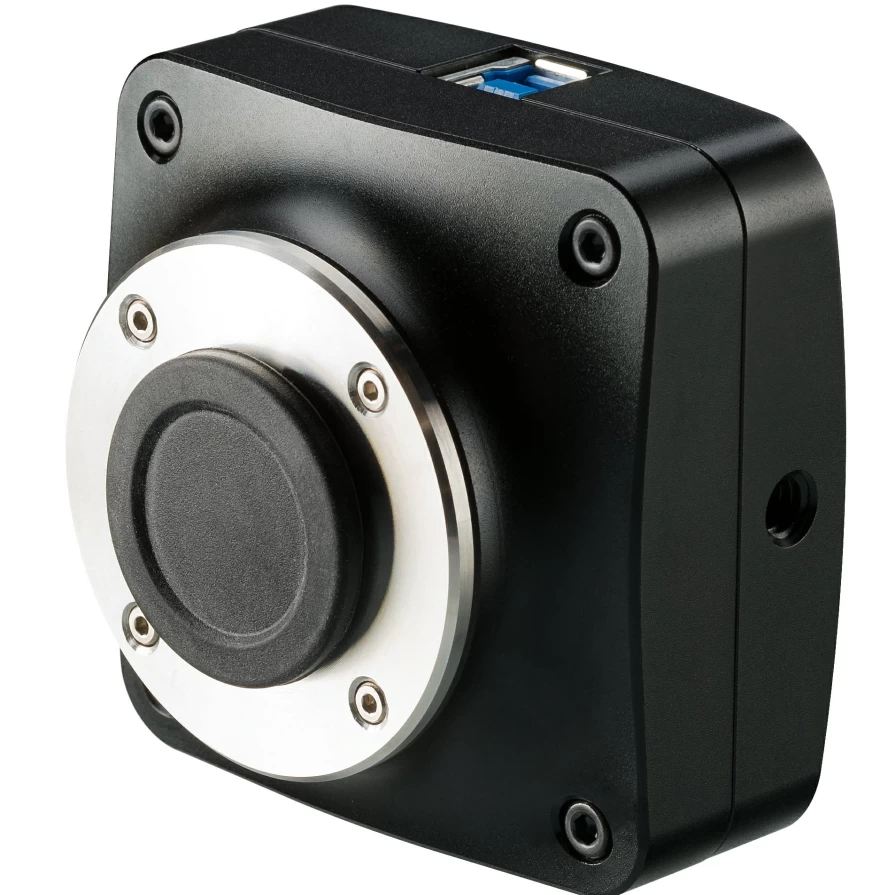

Bresser Mikrocam II 5MP USB Microscope Camera for High-Resolution Digital Microscopy

The Bresser Mikrocamii 5Mp His With The Light Sensitive And Low-Noise Sony® Imx264 Sensor Is Perfectly Suited For Low Light Applications. The Camera Uses A Global Shutter, Which Captures Moving Objects Without Distortion.

With Sufficient Lighting, The Camera Is Also Capable Of Ultra Short Exposures As Low As 1/50.000 Second. In This Mode, The Camera Can Virtually Freeze Fast Moving Objects.

The Bresser Mikrocamlabii Software Includes A Variety Of Useful Functions, E.G. Measuring In Live Mode (Optional Calibration Slide Needed),Mosaic/Stitching, Focus Stacking (For Extended Depth Of Field). All Camera Parameters (Exposure Time, Gain, White Balance) Can Be Set Manually.

Mosaic And Focus Stacking Can Be Done In Live Mode, Which Gives Instant Results Even For Unexperienced Users. The Method Is Also Much Faster Than The Normal Procedure Where A Set Of Images Is Rendered Afterwards. To Use The Mosaic Function In Live Mode, A Crosstable / Mechanical Desk Is Highly Recommended To Move The Sample.

The Big Camera Sensor Is Not Compatible With All Microscope Models. It Might Lead To Vignetting (Dark Edges). To Compensate This, A 1.0X Optical Adapter (Item Code 5914001) Is Recommended.

This Camera Will Not Work With The Etd-201 Stereo Microscope As The Microscope Will Illuminate Only A Part Of The Sensor. For This Microscope, We Recommend The Model Mikrocamii 12Mp Item Code 5914912.

Specifications

• Modern Sony® Imx264 Sensor 8,45Mm X 7,07 Mm (2/3”)
• 5 Mp (2448X2048)
• Software Included, Which Contains Measuring, Focus Stacking, Mosaic / Stitching For Results With Bigger Fields Or Extended Focus Depth
• Capture Images And Video, Incl. Slow Motion And Timelapse
• 1/4″ Tripod Connector
• Precisely Machined Metal Housing
• Compatible With Numerous Microscope Models
• With C-Mount Connector, Which Is Widely Used. Compatible With C-Mount Lenses.
• 1/4″ Connector, For Photo Tripods, Clamps Etc.
• Highspeed Usb 3.0 Port

• Windows 8.1, 10 Or 11
• Intel I3, I5, I7 Or I9 Cpu From The 6Nd Generation Or
• Amd Ryzen Cpu
• Optical Disk Drive Or Internet Connection For Software Download
• Usb 3.0, 3.1

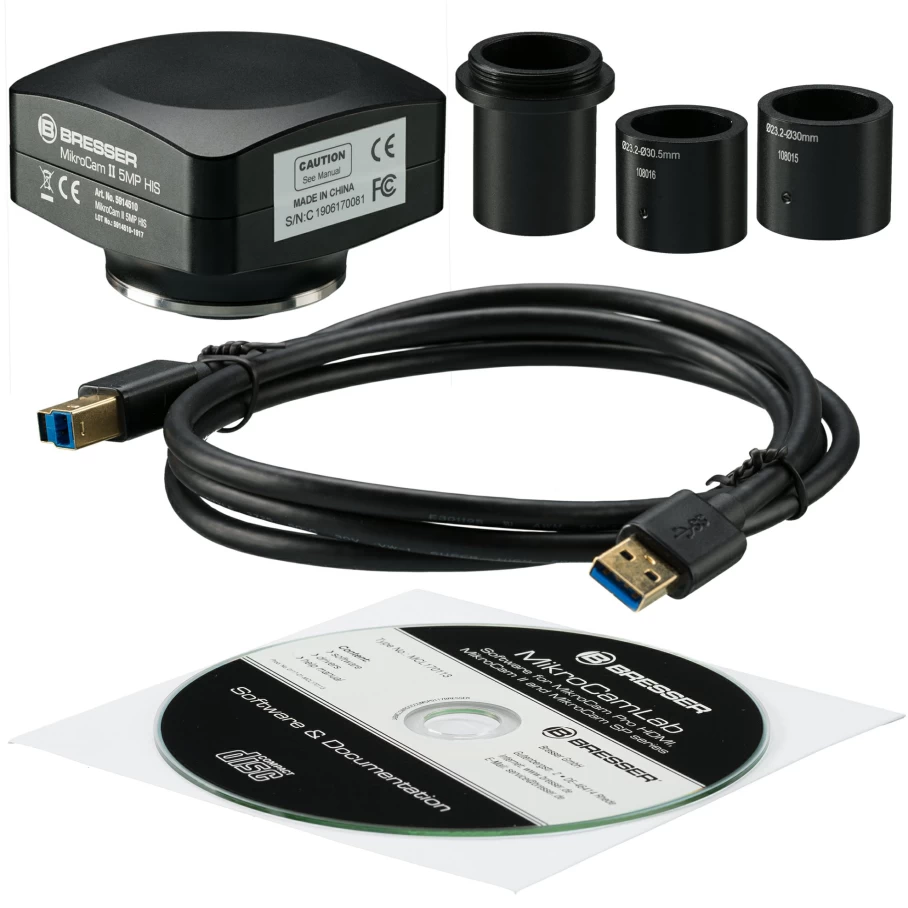

• Camera Body
• Usb 3.0 Cable
• 3 Adapters: 23.2Mm 30.0 Mm And 30.5 Mm
• Software Cd (Windows)
